Easy Installation
Stay warmer with the Innergy Ondol heating system without a boiler room!
It is a modular system with a Lego-style assembly method that can be easily installed using Energy Blocks and Energy Bars.
① Surface Preparation
- ·Level the floor and clean it thoroughly.
- ·The floor should be well-leveled using fascia finishing or level mortar, etc.
② Attaching Dividers and Assembling Innergy Blocks
- ·Attach dividers to the wall and install Innergy blocks according to the room size.
- ·Dividers are partition studs cut to fit the Innergy ondol system.
③ Innergy Bar Installation and Initial Heat Test
- ·Insert the Innergy Bar into the block and connect it to the thermostat.
- ·Connect the power and check the temperature using a thermal imaging camera.

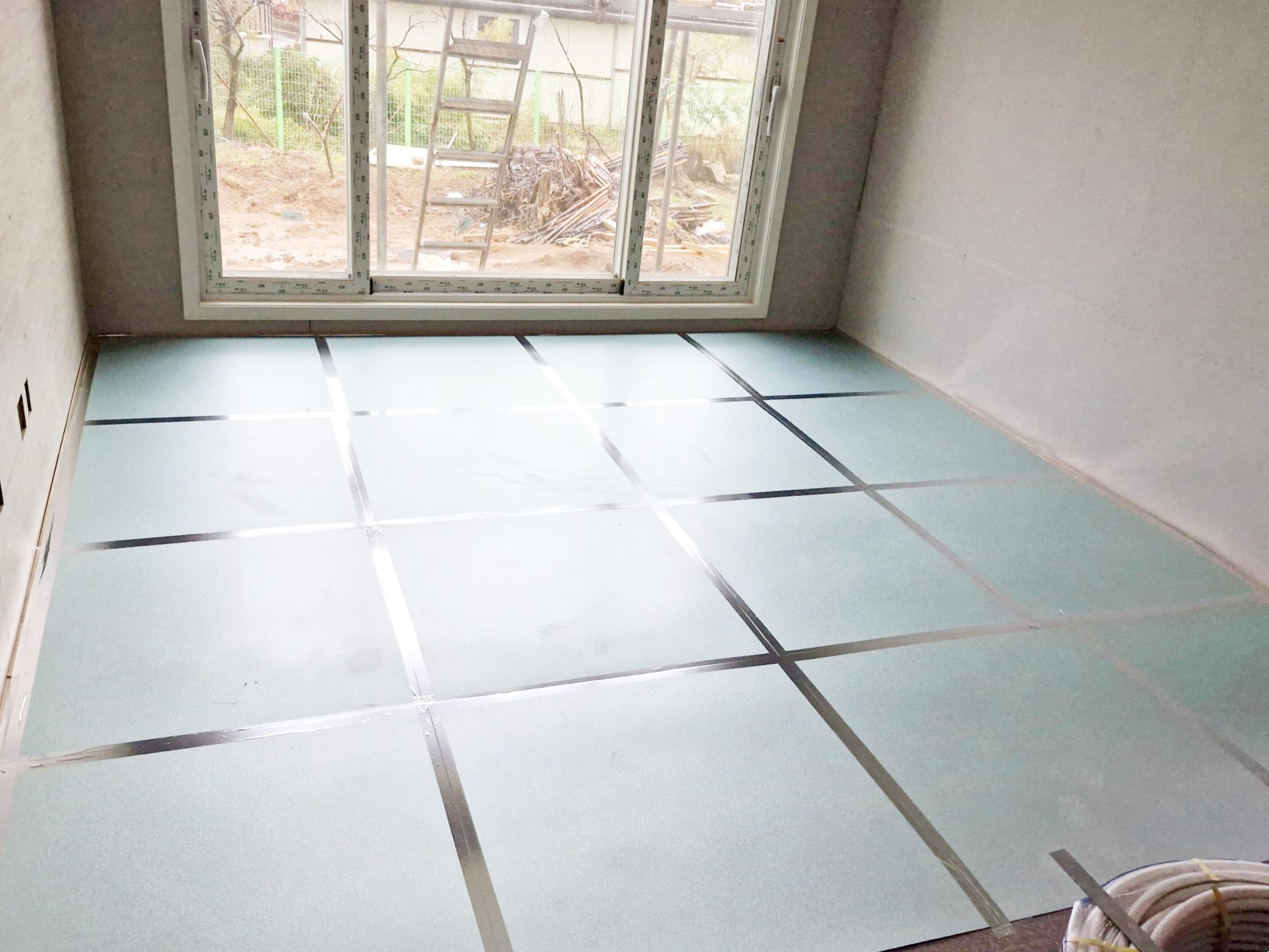

④ Isopink and Metal Sheet
- ·For insulation areas without Innergy Block, lay Isopink insulation.
- · In heated areas with Innergy Block, install metal sheets.
⑤ Plywood Installation
- ·Cover the floor by laying 12mm thick plywood over the heat diffusion plate.
- ·The cutting and covering of plywood should be done by a professional carpenter.
⑥ Final Inspection and Finishing Material Installation
- ·Test the heating function using the thermostat.
- ·If there are no issues, install the desired finishing material (such as linoleum, hardwood flooring, etc.).
